Products

Planetary Ball Mill

< >

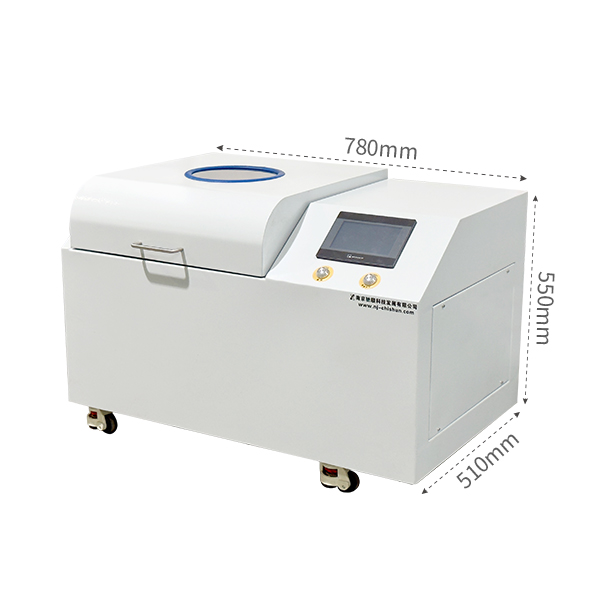

Name： PMQW04 Multi-Angle Planetary Ball Mill

Model： PMQW04

Introduction： PMQW04 Multi-angle Planetary Ball Mill is equipped with four ball mill tanks on a large plate. When the ball mill tank rotates (revolution), the ball mill tank rotates in its orbit, while the plate and the ball mill tank do planetary motion, it can also flip a bucket in a three-dimensional space, and can be artificially set to run at a fixed point in any direction, which makes the grinding material more uniform and can solve the problem of sunk bottom and sticky jar of part of the material.

Flip Ball Mill4*100ml

Parameter
Video
Test case
Clients

PMQW04 Multi-angle Planetary Ball Mill is an essential device for mixing, fine grinding, sample preparation, nano-materials dispersion, new product development and small batch production of high-tech materials. With small size, full-feature, high efficiency and low noise, this product is an ideal instrument for scientific research institutions, higher institutes and corporate research laboratories to obtain the micro-particle samples (four samples can be obtained in one experiment). This instrument can grind and mix samples of different sizes or materials during dry and wet conditions. The smallest particle discharged is 0.1um (namely1 ×10mm-4). Multi-angle Planetary ball mills are widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, beauty, environmental protection and other departments.

Working principle

PMQW04 Multi-angle Planetary Ball Mill is equipped with four ball mill tanks on a large plate. When the ball mill tank rotates (revolution), the ball mill tank rotates in its orbit, while the plate and the ball mill tank do planetary motion, it can also flip a bucket in a three-dimensional space, and can be artificially set to run at a fixed point in any direction, which makes the grinding material more uniform and can solve the problem of sunk bottom and sticky jar of part of the material.

Specifications

Applications	Electronic materials, soil, aerospace materials, batteries, ceramics, minerals, metallurgy, etc.
Applicable samples	Soft, hard, brittle, fibrous, dry or wet
Max. feed volume	2/3 of the of the grinding jar
Vacuum grinding	optional
Feed size	soil≤10mm other≤3mm
Final fineness	0.1μm
Alternate timing	1-9999min
Working method	360°flip grinding and fixed point operation
Rotation	800rpm
Grinding jar	50ml、100ml
Vacuum jar	50ml
Certificate	UL、CE
Power	220V 0.75kw 50~60Hz
Packaging Details	886277cm 130KG
Data storage	20 sets processes
Data monitoring	Real time monitoring of operational status, supporting fault alarms
Programmable operation	6 sets operation steps supporting edit/delete
Control mode	7" HMItouch screen, Multiple operation modes (forward and reverse alternating operation, interval operation, timed operation)
Jar materials	Stainless steel, vacuum, agate, zirconia, alumina, PTFE, nylon, tungsten carbide，etc.
Competitive Advantage	1、Factory direct delivery 2、Quality assurance 3、Best price 4、Compact in size 5、Complete specifications 6、Service Assurance
